Place of Origin:
China
Brand Name:
womala
Certification:
SGS
Model Number:
31480558
Womala 31480558 Power Brake Booster Vacuum Pump for S60 (2019-)
Quick Details:
| Brand Name | womala |
| Car Model | for S60 (2019-) V60 (2011-2018), S80 (2007-), S90, V90 (2017-), V40 (2013-), V40 CC, V60 (2019-) |
| Material | Matel |
| Product Name | Power Brake Booster Vacuum Pump |
| Year | 2019- |
| Part Number | 31480558 |
| Port | Guangzhou Ningbo Shanghai |
| Our advantages |
Factory directly sale, wecome to visit any time. High quality and competitive price. Leading manufacture of Complete set of car parts |
Detailed Description:
The vacuum pump is mainly composed of a pump body, a rotor, a blade, an air inlet and an air outlet. Taking a single-blade vacuum pump as an example, the driving torque rotates the rotor through the engine camshaft and the vacuum pump connector, and then drives the plastic single blade to rotate along the contour of the vacuum pump cavity at the eccentric position of the cavity. In Figure 4, the upper side of the single blade is divided into two chambers, and the left side is the vacuum chamber. As the single blade rotates, the volume of the chamber becomes larger and larger. Thus, the vacuum degree is generated, and the vacuum booster is increased through the air inlet of the one-way valve connected to the vacuum booster. The right chamber is a compression chamber. As the single blade rotates, the volume of the cavity becomes smaller and smaller, so that the lubricating oil and air pumped from the vacuum booster are compressed into the engine. The lubricating oil from the engine enters from the center of the rotor, lubricates the vacuum pump cavity and corresponding components, and acts as a seal between the floating terminal on the single blade and the contour of the cavity.

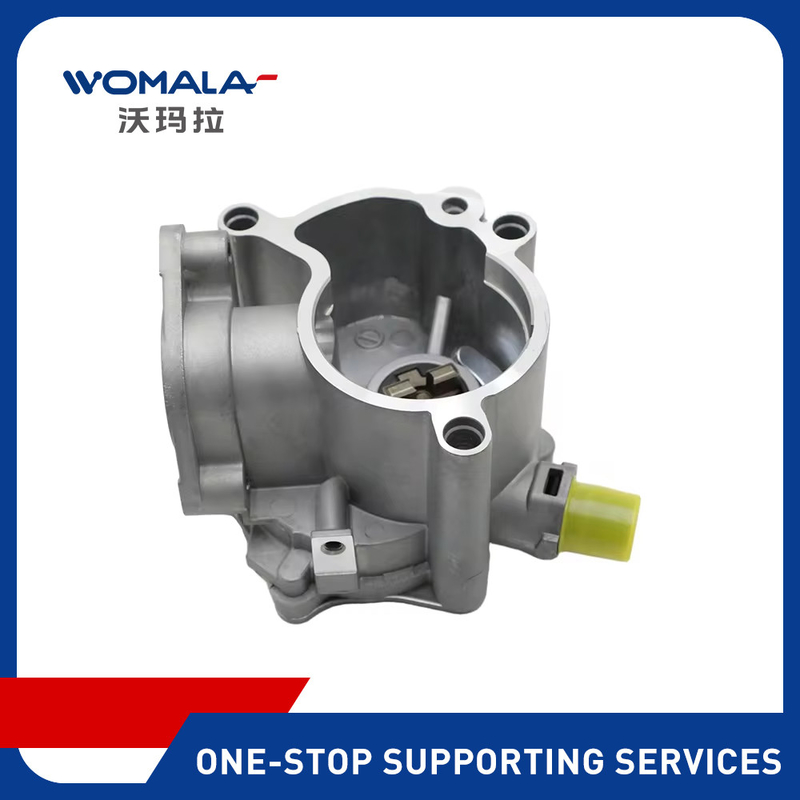

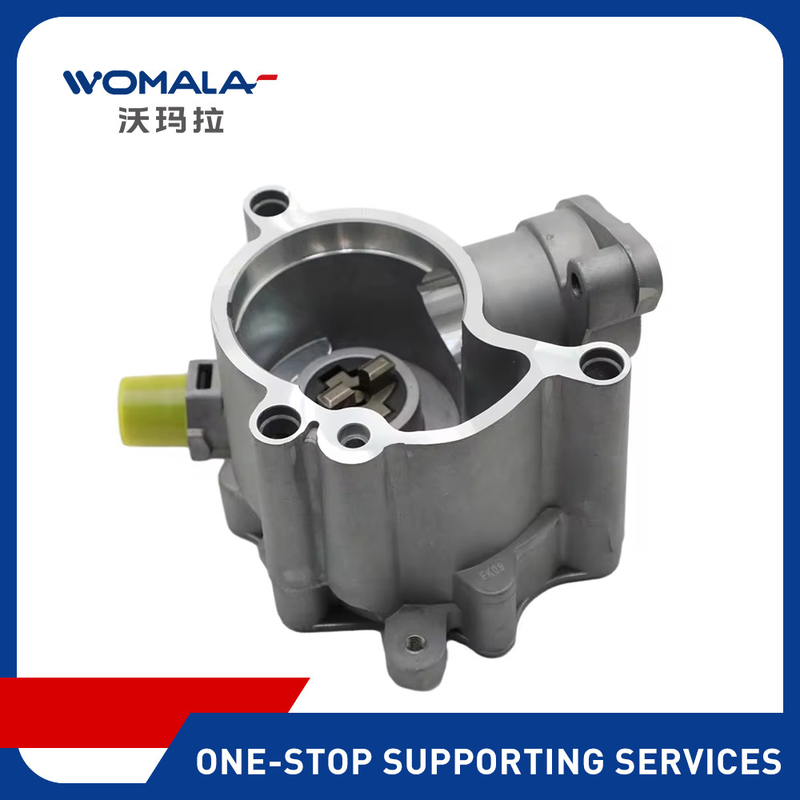

Product Photo:
Industry advantage:
● OEM DOM Service
● 16+Year Of Exports Experience
● Export Of Whole Vehicle Parts
● Brand Quality And Assurance
● Large Inventory,Fast Delivery
● More Than 10000+SKU Numbers
Company Profile:
Established in Guangzhou China, Womala Autoparts as a comprehensive company with five branches has engaged in for for parts for more than 10 years. There are hundreds of professional staff working in our supply department, sales and logistic support departments. Thanks to the deep cooperation with over 50 factories including 5 joint-stock companies, we have provided a variety of reasonable product solutions and reliable market information constantly to clients around the world over the past ten years.
